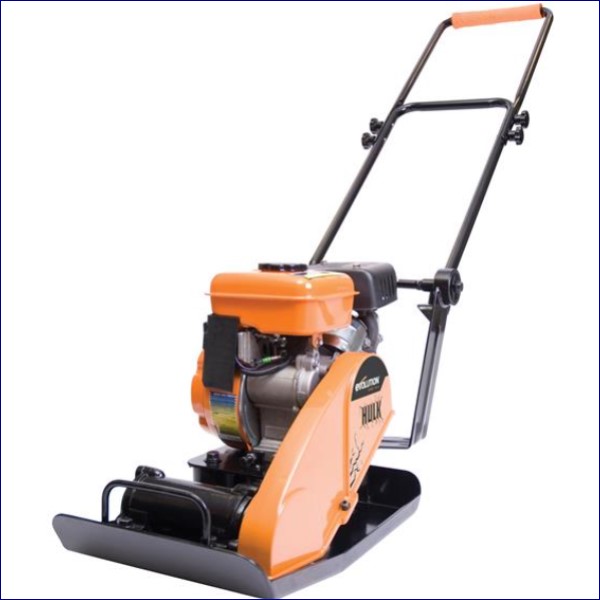

The Evolution Hulk Compaction Plate is a professional quality compaction plate which offers superb value and is a very realistic alternative to hiring for many users. It is powered by a 2.4hp, 4 Stroke OHV Single Cylinder petrol engine and has a compact deisgn so it is very portable, but rest assured although small in size, performance is not compromised.

Ideal for the building and landscaping industries and for the following applications: Crusher Run, Sand, Soil, Small Aggregates, Patio & Block Paving Preparation, Driveways & Tarmac Repair.

Specification

Engine: Petrol 4 Stroke OHV Single Cylinder 2.4hp
No Load Speed: 3,600/min.
Oil Type: SAE 10W-30 (API SJ or SL)
Oil Capacity: 0.25 litres
Fuel Type: Unleaded (Octane 86 or higher)
Fuel Capacity: 1.2 litres
Valve Clearance: IN: 0.15mm 0.02mm (cold) EX: 0.20mm 0.02mm (cold)
Spark Plug: NGK BPR6ES
Spark Plug Gap: 0.028 – 0.031in
Compaction Force: 10kN
Plate Working Area: 400 x 320mm
Usage Time: 20mins.
Weight: 38kg

Vibration: 46m/s²
Sound Power Level (LWA): 101dB(A)
