22WAG60281155 | WAGO 221 SERIES SELECTION CASE 85 PIECES
|
£41.81 (INC. VAT: £50.17) |
Description

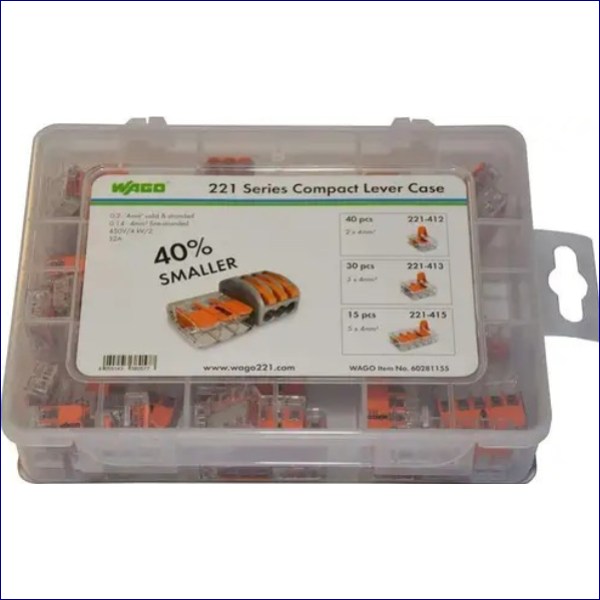

- This is the WAGO 60281155 Installation Box – 221 Series – containing 85 connectors: 40 x 2 way, 30 x 3 way, 15 x 5 way.
- Wago 221 Series Terminal Selection Box – Up to 40 % smaller less space required than for the original WAGO 222.
- Transparent housing for visual inspection shows that the wire is inserted properly and stripped to the correct length.
- Easy termination via reduced operating force.
- Any combination of wire types and sizes from 0.14 to 4 mm² (24–12 AWG) is possible.
- This box contains: 40 x 221-412, 30 x 221-413, 15 x 221-415.
- Compact connector with levers.
- Solid conductor size 0,2 mm² to 4 mm².
- Stranded conductor size 0,2 mm² to 4 mm².
- Flexible conductor size 0,14 mm² to 4 mm².
- No. of potentials: 1.
- Two test ports for all standard test probes.
- Maximum Voltage EN 450 V.
- Maximum Isolation 4 kV.
- Pollution degree 2. In earthed supplied systems.
- Current intensity EN 32 A.
- Colour: Transparent.
- Wiring type: Side-entry.
- Strip length from 11mm.
