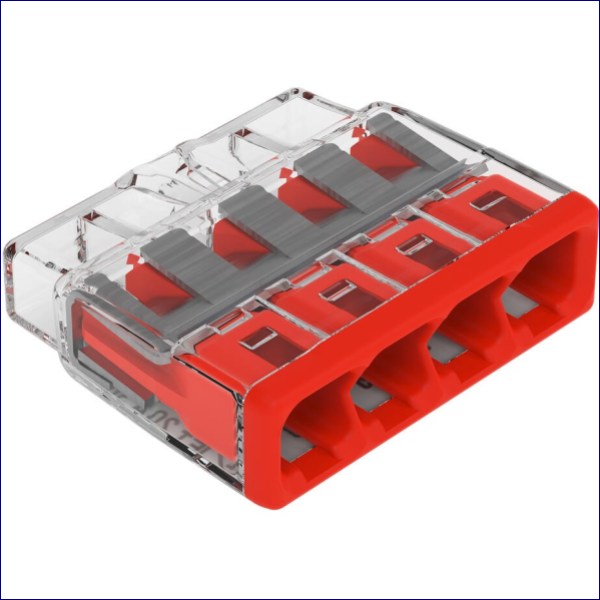

Convenient electrical installations are guaranteed with push wire® splicing connector (item number 2773-404). The 2773 Series PUSH WIRE® connectors for junction boxes provide safe, quick, and easy installations in any building, no matter the position or location. Strip lengths must be 13 mm  when connecting conductors to push wire® splicing connector. Our splicing connector is rated for 450 V and is designed to handle a rated current of up to 32 A. It can therefore be used in high-load applications. Featuring conductor terminals along with PUSH WIRE®, this connector is highly versatile. Our PUSH WIRE® connection is the quick and simple method for connecting solid conductors. The dimensions are (21.2 x 6.3 x 18.6) mm (width x height x depth). Push wire® splicing connector is suitable for conductor cross sections ranging from 0.75 mm² to 4 mm².

The contact surface is coated with tin.

Brand	WAGO
